The Duke

Residential
Alteration and Addition
2018
Whadjuk
Scarborough

Builder
Integrated Constructions

Photographer
Dion Robeson

Styling
Jo Carmichael

Structural Engineer
Reed Engineers

Energy Efficiency Assessor
Structere

Building Surveyor
John Massey Group

Modern house exterior with gray paneling, a driveway, and a man walking on the sidewalk in front. A mature tree, plants, and house number 62 are visible.

Design it small but mighty

The owner of this 1950’s home came to &Dalecki wanting to create a contemporary addition, transforming their small, two bedroom, one bathroom house into a three bedroom, two bathroom home suitable for a young, growing family.

A limited budget, combined with a limited building envelope, meant the primary challenge of the project was to find a pocket of space on the block large enough to house the walk-in robe, ensuite and living area additions, without encroaching on the outdoor living or garden area. A pocket of underutilised space, 5 metres wide by 4 metres deep housing an unused carport and store room was identified as the best location.

Whilst this space was the most logical choice for the location of the additions, it still came with its own challenges. Due to the fall of the land, the existing house was quite built up, therefore a sunken living space was opted for, meaning the living room addition could be built right up to the boundary, without dominating the neighbouring property and still complying with planning codes and policies.

One of the client’s primary wishes was for the additions to be a light, bright and functional space. Given that the new living room was built right up to the boundary, a stepped ceiling was designed with highlight clerestory windows, allowing every square metre of available space to be utilised, whilst still taking advantage of the north sun to filter natural light into the room. These highlight windows also supported overheight, 3.5 metre ceilings, increasing the overall volume of the room and creating the illusion of space within the small footprint area.

Wanting to achieve a connection with the outdoor alfresco area, &Dalecki created a feature of the room’s entry stairs, incorporating a day seat and large window opening up onto the alfresco area. This day seat window also serves to cool the room in conjunction with the front façade feature window, capturing the southwest breeze and directing it through the room to naturally cool the space.

The client’s love of raw, unfinished products influenced the material selections for the house addition. Painted brickwork and exposed concrete were utilised to intentionally contrast the material palette of the existing house internally, whilst also adding an extra dimension of textural interest to the small area.

Sketch of a small building with two sections, a sun symbol, and directional arrows indicating light or air flow.
Modern house exterior with gray and white facade, driveway, and front yard featuring a tree and greenery. Number 62 on mailbox.
Modern architectural structure with a gray panel wall, adjacent to a white brick chimney. A small garden with tropical plants is in the foreground, under a partly cloudy blue sky.
Modern house with gray panel exterior, a small window, white railing, adjacent stone wall, and a blooming tree with pink flowers, under a blue sky with clouds.
Modern living room with gray sofa, pillows, glass coffee table, orange rug, potted plant, armchair, floor lamp, and wall art. Large window with garden view and steps leading to a dining area.

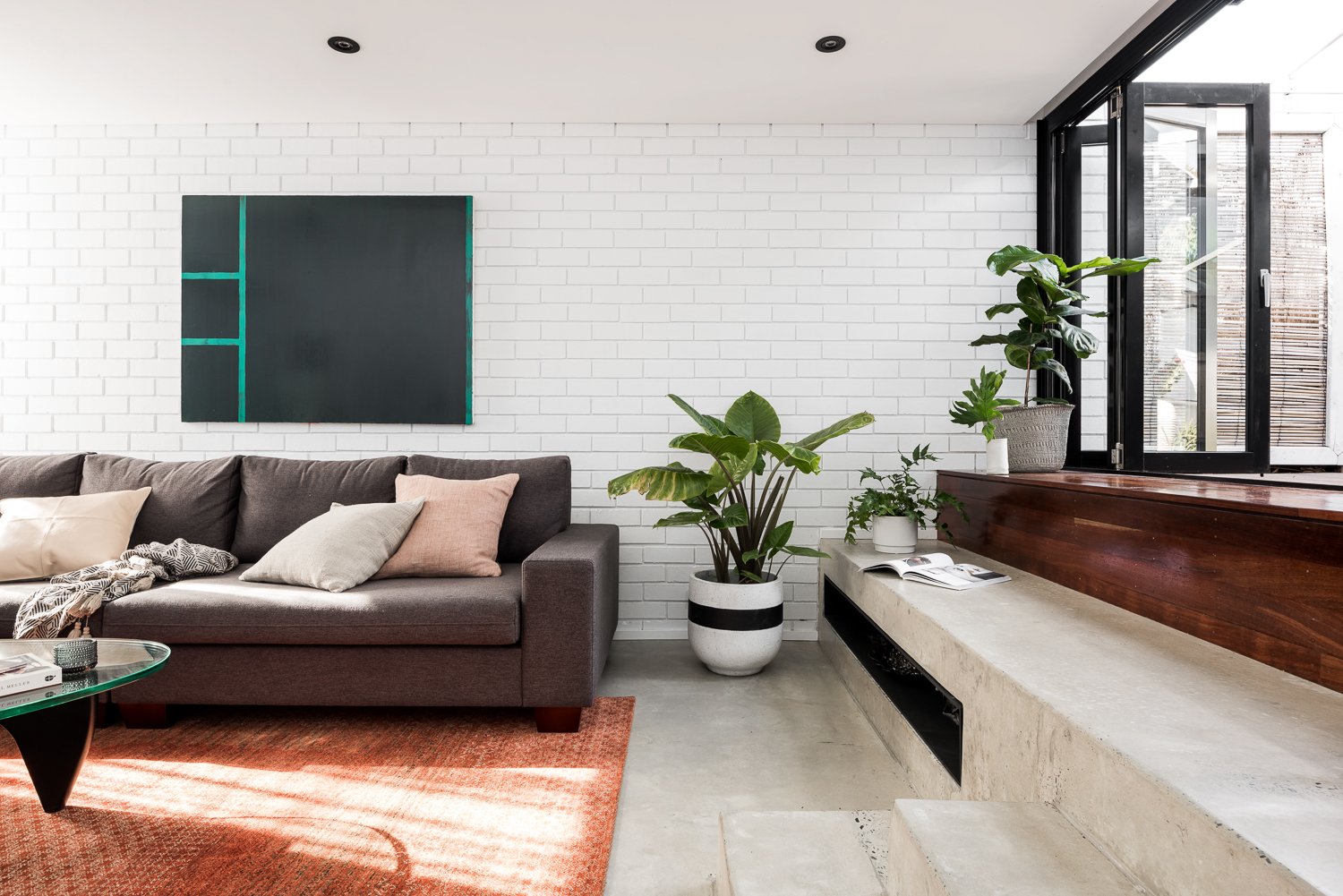

Modern living room with a gray sofa, white brick wall, abstract artwork, green plants, and glass-top coffee table. Large windows and natural light.
Modern living room with gray armchair, orange rug, glass coffee table, concrete steps, wall art, tall black lamp, large windows, and access to a study with bookshelves and a wooden desk.
Modern living room with a gray sofa, colorful pillows, and a patterned throw. A glass coffee table sits on an orange rug. A floor lamp is beside a white armchair. There's an open view to a garden through wide windows. Minimalist decor and a person walking in the background.

From the Owners

Janik took our brief and ideas and transformed them into a unique, inspiring design that met our needs and our budget. He worked hard to gain approvals, produced excellent documentation and has a good network of builders. We have always found Janik quick to respond to queries and easy to work with.

Ryan
